Kailh Red Bean Pudding Box Switch Set
Linear Typing Feel

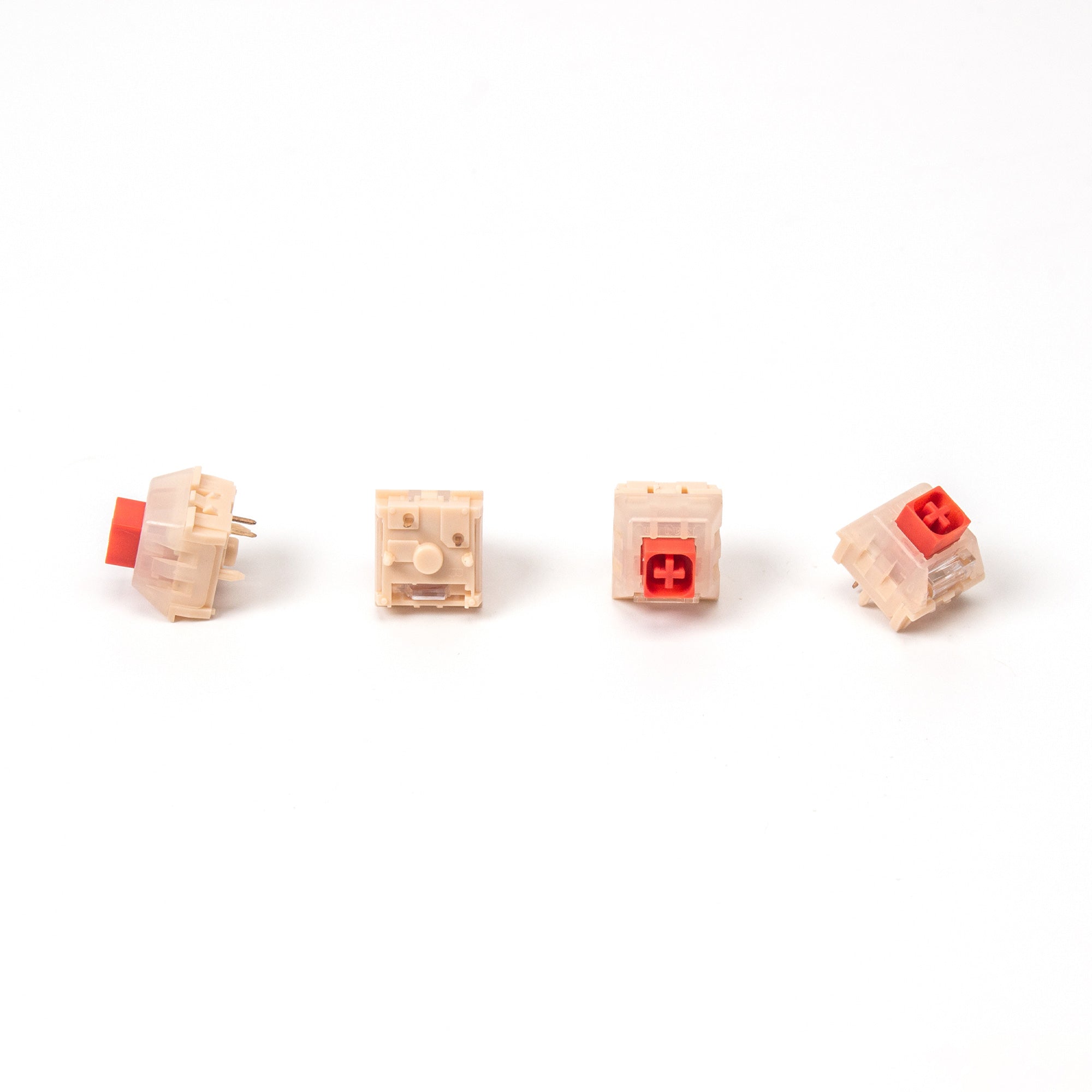

The Kailh Red Bean Pudding Switch is a box switch with a comfortable linear typing feel. This switch is built with a red stem, a translucent cover, and a POM material base. Its whole appearance reminds us of a pudding with a touch of red bean as a pop of color, one of our favorite refreshing desserts.
![Kailh Red Bean Pudding Switch Kailh Red Bean Pudding Switch](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/kailh-red-bean-pudding-switch-1664005135503.jpg?v=1664005138)
POM Material Stem And Base
The Red Bean switch is equipped with a stem and base made of self-lubricating POM material and delivers a ultra-smooth feel.
Short Spring. Stronger Rebound
Crafted with a 13mm short spring, this box switch has more than 35 grams of return force to offer a strong sense of feedback.
![Kailh Red Bean Pudding Switch Spring Kailh Red Bean Pudding Switch Spring](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/kailh-red-bean-pudding-switch-spring-1664005154342.jpeg?v=1664005155)
![Kailh Red Bean Pudding Switch Backlight Kailh Red Bean Pudding Switch Backlight](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/kailh-red-bean-pudding-switch-backlight-1664005172669.jpg?v=1664005174)
90% Light Transmittance
The switch has a light guide post within the switch housing to let more RGB light shine through and can reach 90% light transmittance.
90% Light Transmittance
The switch has a light guide post within the switch housing to let more RGB light shine through and can reach 90% light transmittance.
![Kailh Red Bean Pudding Switch Backlight Kailh Red Bean Pudding Switch Backlight](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/kailh-red-bean-pudding-switch-backlight-1664005172669.jpg?v=1664005174)
Dustproof & Waterproof “Box” Design
Its box design has dustproof and waterproof features, increasing the switch’s lifespan and longevity.
![Kailh Red Bean Pudding Switch “Box” Design Kailh Red Bean Pudding Switch “Box” Design](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/dustproof--waterproof-box-design-1664005192930.jpg?v=1664005194)
Product Structure
![Kailh Red Bean Pudding Switch Structure Kailh Red Bean Pudding Switch Structure](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/kailh-red-bean-pudding-switch-structure-1671242869916.jpeg?v=1671242871)
Technical Data
Red Bean Pudding Switch
Type | Linear |
---|---|
Operation Force | 45±10 gf |
Pre-travel | 1.8±0.4 mm |
Return Force | ≥35 gf |
Total Travel | 3.6±0.3 mm |
Sound Level | Low |
Operation Life | Up to 80M cycles |
Suitable For | Gaming/office |
![Kailh Red Bean Pudding Switch Force Travel Diagram Kailh Red Bean Pudding Switch Force Travel Diagram](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/kailh-red-bean-pudding-switch-1663927535207.png?v=1663927536)
Product Spec
Product Name | Kailh Red Bean Pudding Switch |
---|---|
Stem | POM |
Top Housing | PC |
Bottom Housing | POM |
Contact | Composite gold |
Spring | Spring steel |
Protecting Cover | Nylon |
Slider | POM |
Light Guide Post | PC |
Pins | 5-Pin |
Factory Pre-lubed | No |
SMD LED Support | Yes |
