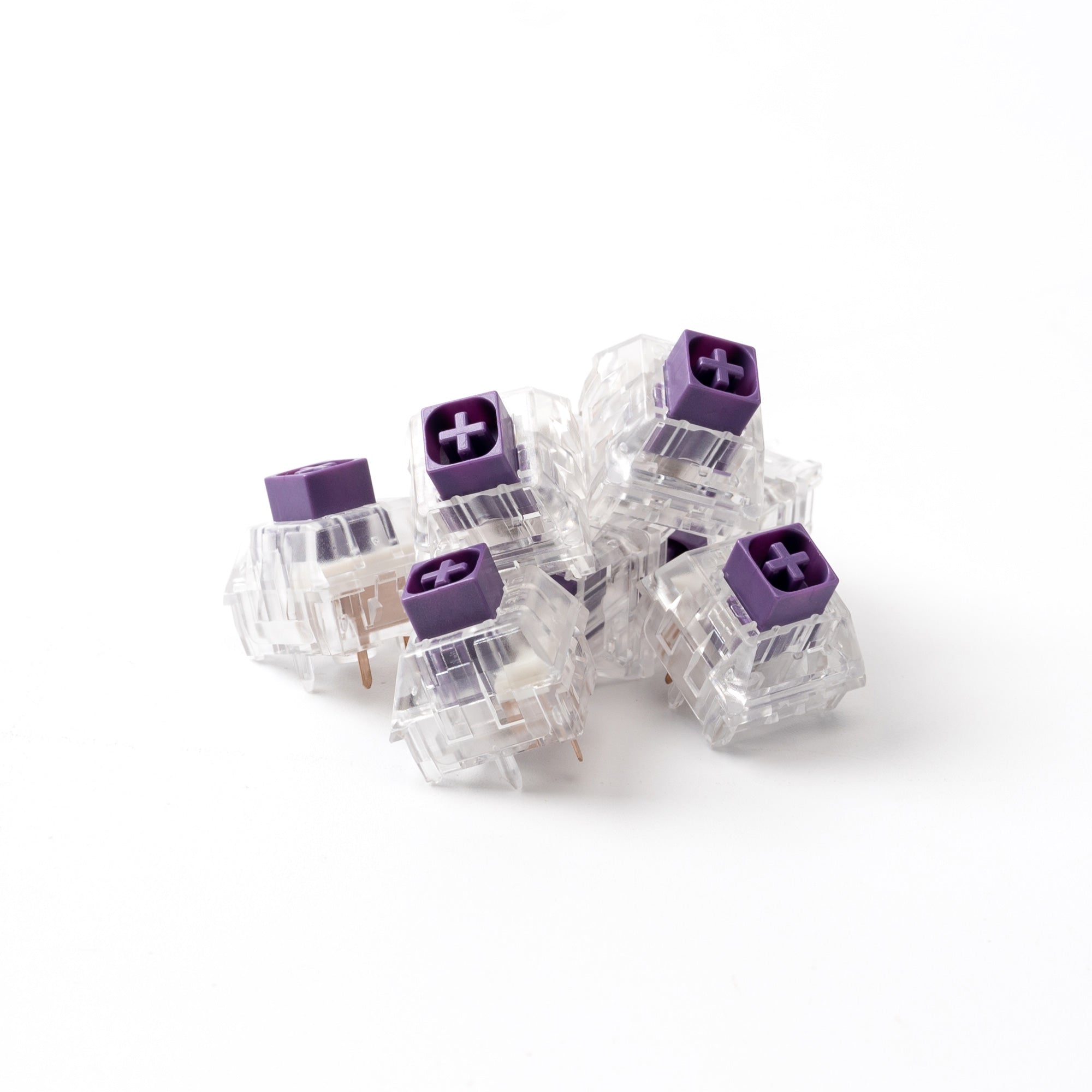

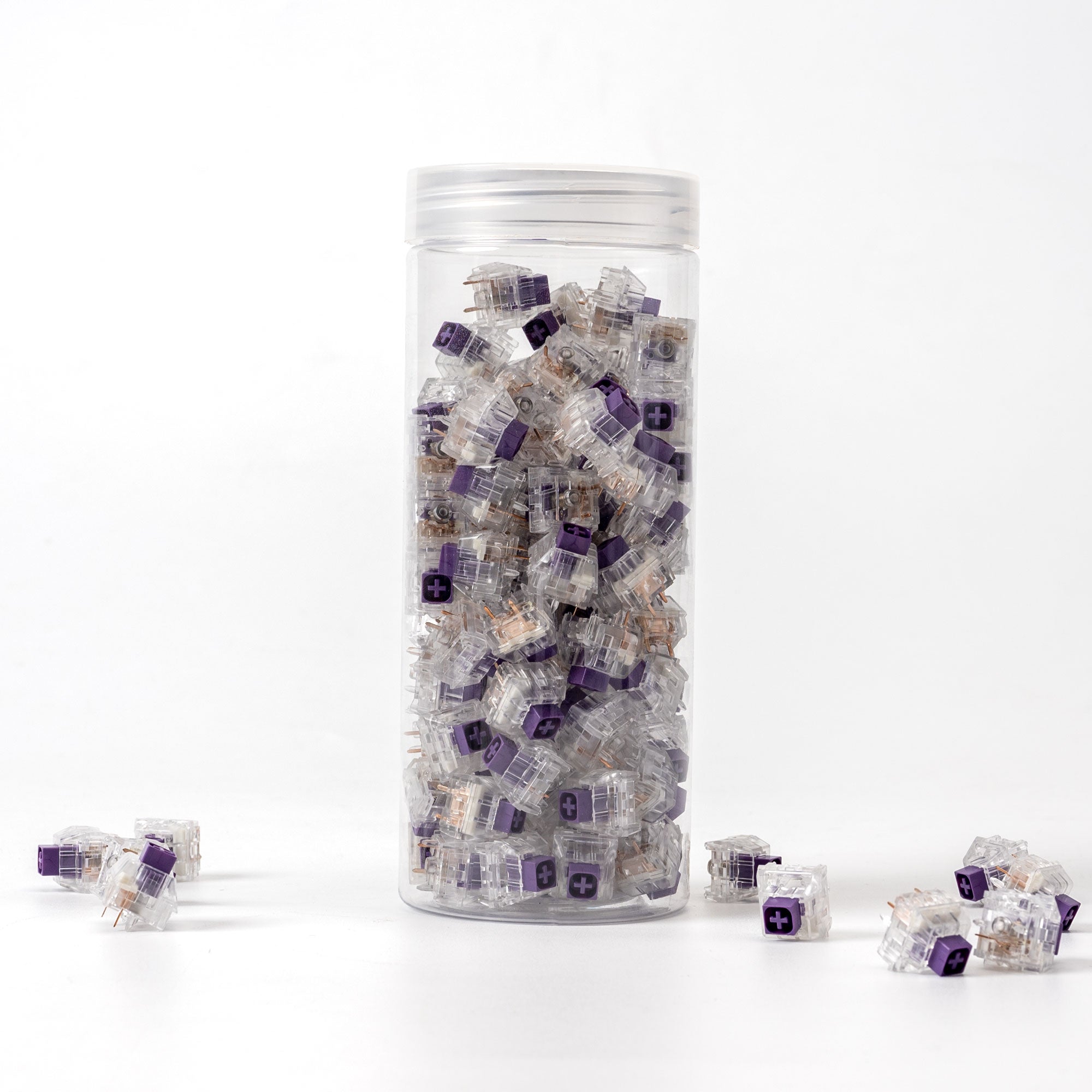

Kailh Crystal Royal Box Tactile Switch Set
Tactile Typing Feel
The Kailh Crystal Royal Box Switch is a tactile switch that features a crisp bump. It has an operation force of 45 grams, and a tactile force of 75 grams, and provides noticeable tactile feedback. It is an ideal option for those who prefer a tactile typing experience.

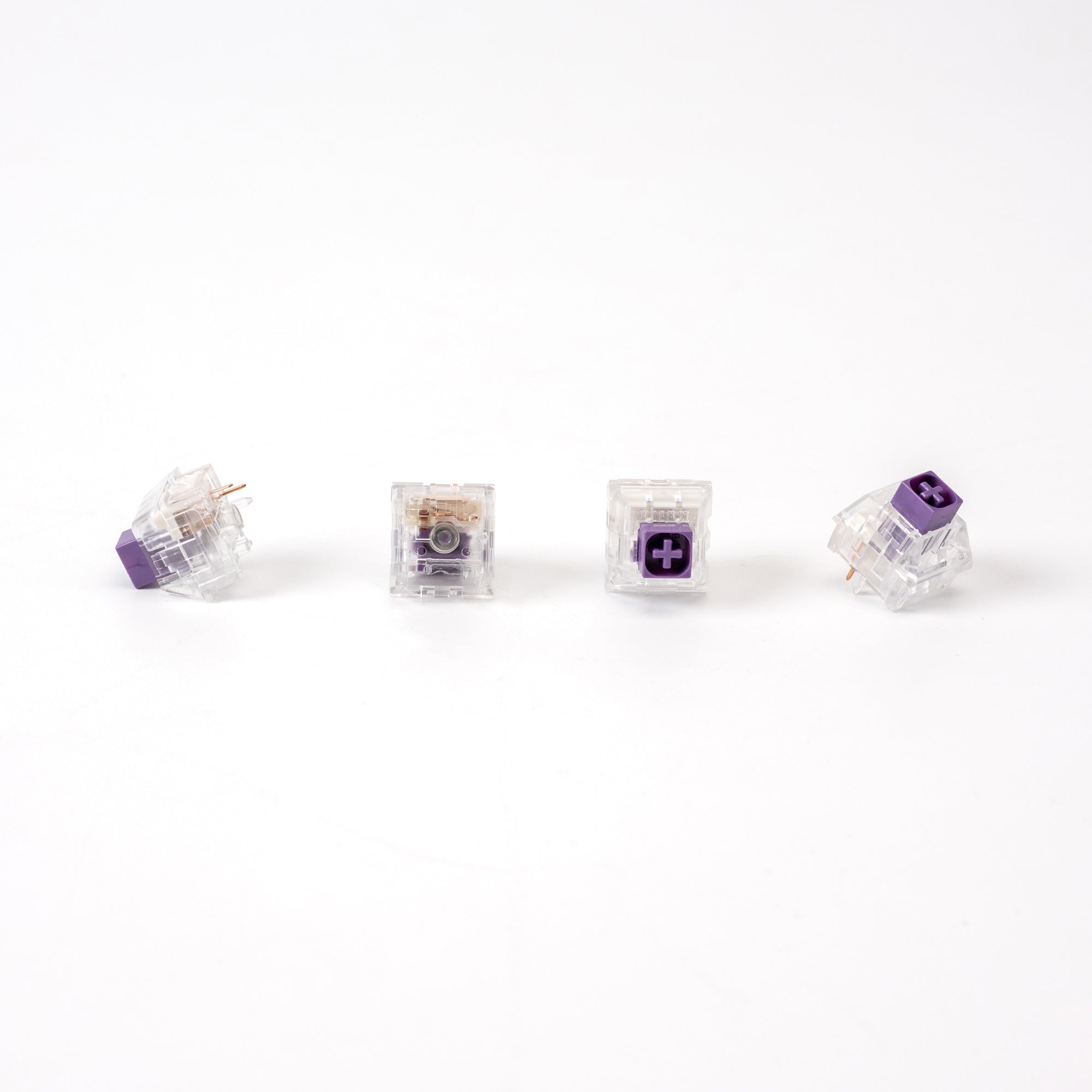

![Kailh Crystal Royal Box Tactile Switches Kailh Crystal Royal Box Tactile Switches](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/kailh-crystal-royal-box-tactile-switch-1666854290575.jpg?v=1666854293)
Gold Plated Spring
This switch adopts a gold-plated spring to enhance its oxidation resistance and anti-vulcanization performance.
Double Dustproof & Waterproof Structure
By equipping this switch with a dust wall design and box structure, these Box switches have IP56 degrees of protection and prevent dust and water from causing corrosion.
![Double Dustproof & Waterproof Structure Double Dustproof & Waterproof Structure](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/double-dustproof--waterproof-structure-1666854313308.jpg?v=1666854314)
![Kailh Crystal Royal Box Tactile Switch Backlight Kailh Crystal Royal Box Tactile Switch Backlight](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/kailh-crystal-royal-box-tactile-switch-backlight-1666854328541.jpg?v=1666854330)
Excellent Backlight Effect
This switch adopts a transparent housing to increase light permeability and provides prime lighting to the typist or gamer.
Excellent Backlight Effect
This switch adopts a transparent housing to increase light permeability and provides prime lighting to the typist or gamer.
![Kailh Crystal Royal Box Tactile Switch Backlight Kailh Crystal Royal Box Tactile Switch Backlight](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/kailh-crystal-royal-box-tactile-switch-backlight-1666854328541.jpg?v=1666854330)
5-Pin Scheme
The 5-Pin structure provides stability and less wobbliness for this switch when pressed.
![Kailh Crystal Royal Box Tactile Switch 5-Pin Scheme Kailh Crystal Royal Box Tactile Switch 5-Pin Scheme](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/5pin-scheme-1666854350003.jpg?v=1666854351)
Product Structure
![Kailh Crystal Royal Box Tactile Switch Structure Kailh Crystal Royal Box Tactile Switch Structure](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/kailh-crystal-royal-box-tactile-switch-structure-1666946224632.jpeg?v=1666946227)
Technical Data
Crystal Royal Box Switch
Type | Tactile |
---|---|
Operation Force | 45±15 gf |
Pre-travel | 1.8±0.4 mm |
Return Force | ≥15 gf |
Tactile Force | 75±10 gf |
Total Travel | 3.6±0.3 mm |
Sound Level | Medium |
Operation Life | Up to 80M cycles |
Suitable For | Midway Gaming/office |
![Kailh Crystal Royal Box Tactile Switch Force Travel Diagram Kailh Crystal Royal Box Tactile Switch Force Travel Diagram](https://cdn.shopify.com/s/files/1/0657/6075/5954/t/3/assets/kailh-crystal-royal-box-tactile-switch-force-travel-diagram-1666691880095.png?v=1666691882)
Product Spec
Product Name | Kailh Crystal Royal Box Switch |
---|---|
Stem | POM |
Top Housing | PC |
Bottom Housing | PC |
Contact | Composite gold |
Spring | Spring steel |
Protecting Cover | Nylon PA66 |
Slider | POM |
Pins | 5-Pin |
Factory Pre-lubed | No |
SMD LED Support | Yes |
Would like to know more about Kailh Box switches? Click here.
