Kailh Box Switch Set

$35.00

Option
Quantity of one set
5 in stock

Stable And Comfortable

The Kailh Box Switches feature a transparent PC-sealed cover, POM stem, and nylon base. They deliver superior stability and a comfortable typing experience. Their stems are designed with a square dust wall to give more stability and reduce the wobble of your keycaps.

Kailh Box Switch

18K Gold Contact

The Box Switches are engineered with 18K gold contact that allows for high corrosion-resistant, antioxidant properties, and guarantees the switch lifespan of about 80 million keystrokes.

Dustproof & Waterproof “Box” Structure

The highly-precise sealed “Box” structure provides extra protection for the contact plate and leaf. It has an IP56 waterproof and dustproof level to keep dust and moisture away.

Kailh Box Switch “Box” Structure
Four Types of Typing Feel

Four Types of Typing Feel

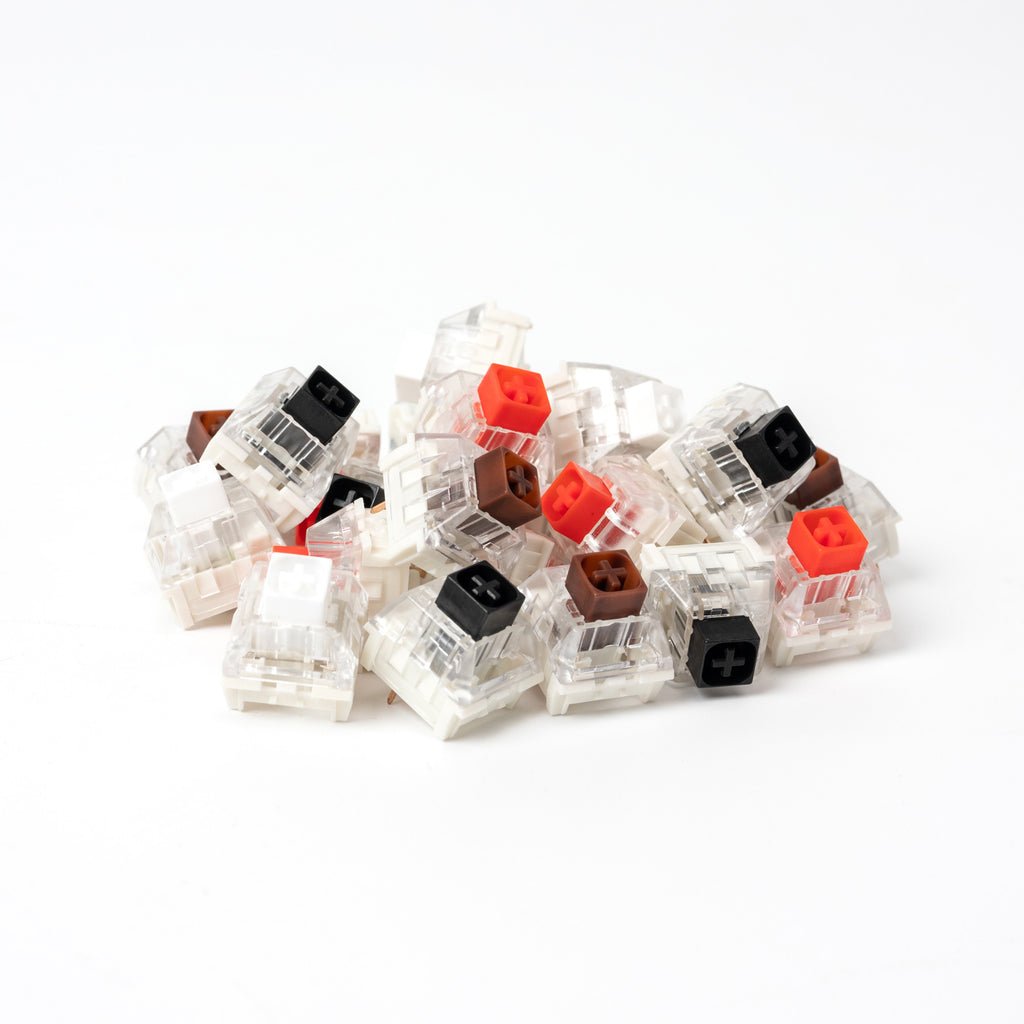

These switches come in 4 colors to meet the needs of any preferences. Available in your choice of linear, tactile, clicky, and heavy-force linear switches.

Four Type Typing Feel

These switches come in 4 colors to meet the needs of any preferences. Available in your choice of linear, tactile, clicky, and heavy-force linear switches.

Four Types of Typing Feel

High Compatibility 3-Pin Design

These 3-Pin switch bases are built with a hollowed-out light position design to offer compatibility to SMD-LED light and combines an MX stem structure to support most of the mechanical keyboards on the market as well.

Kailh Box Switch 3-Pin Design

Product Structure

Kailh Box Switch Structure

Technical Data

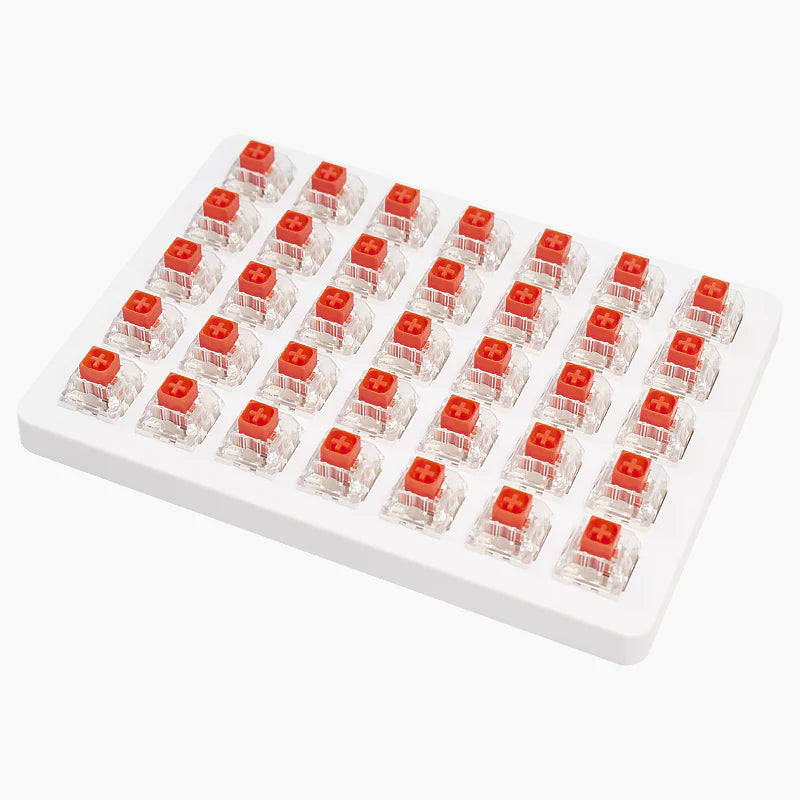

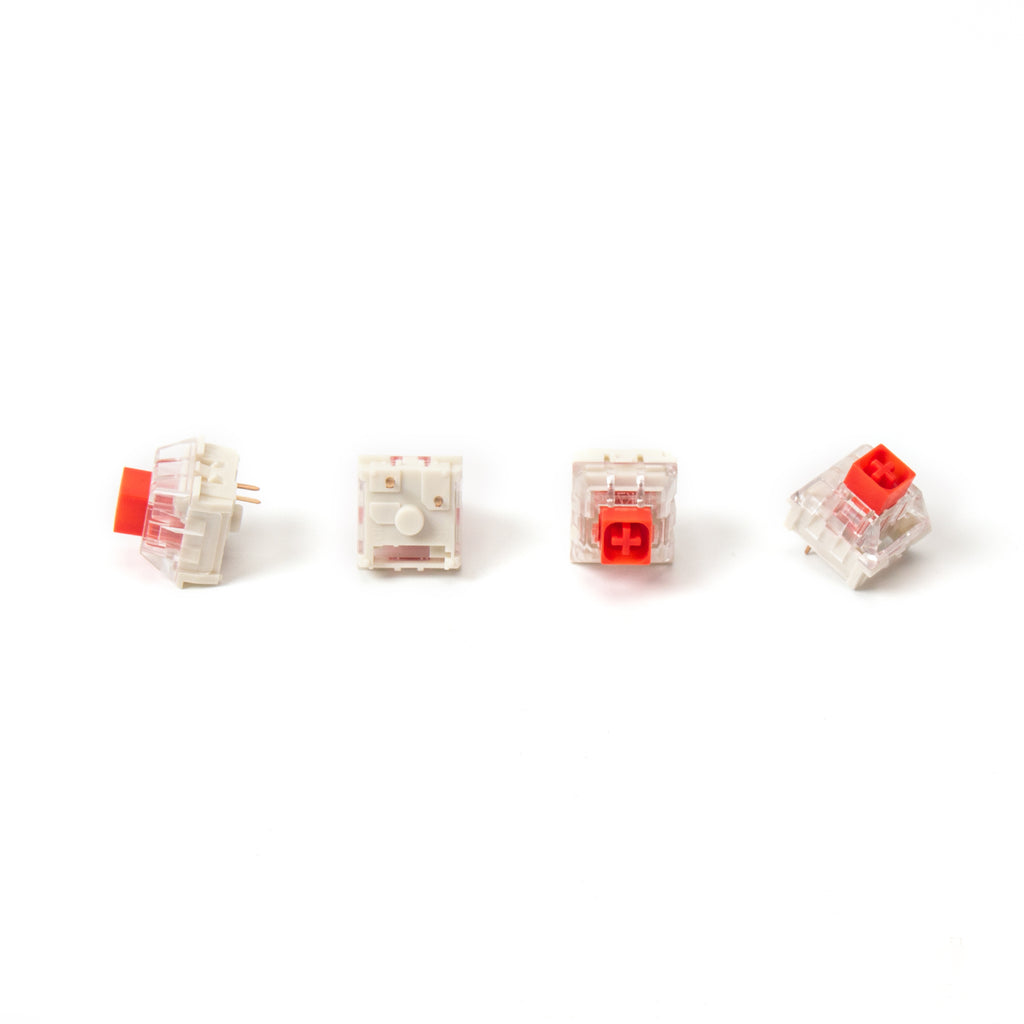

Box Red Switch

TypeLinear
Operation Force45±10 gf
Pre-travel1.8±0.4 mm
Return Force≥15 gf
Tactile Force-
Total Travel3.6±0.3 mm
Sound LevelLow
Operation LifeUp to 80M cycles
Suitable ForGaming/office
Kailh Box Red Switch Force Travel Diagram

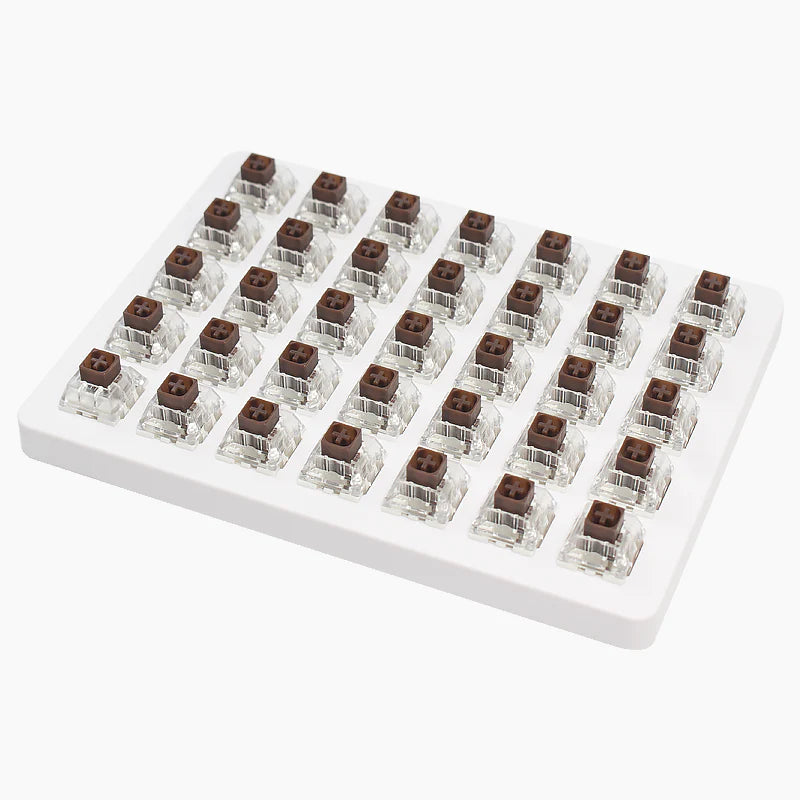

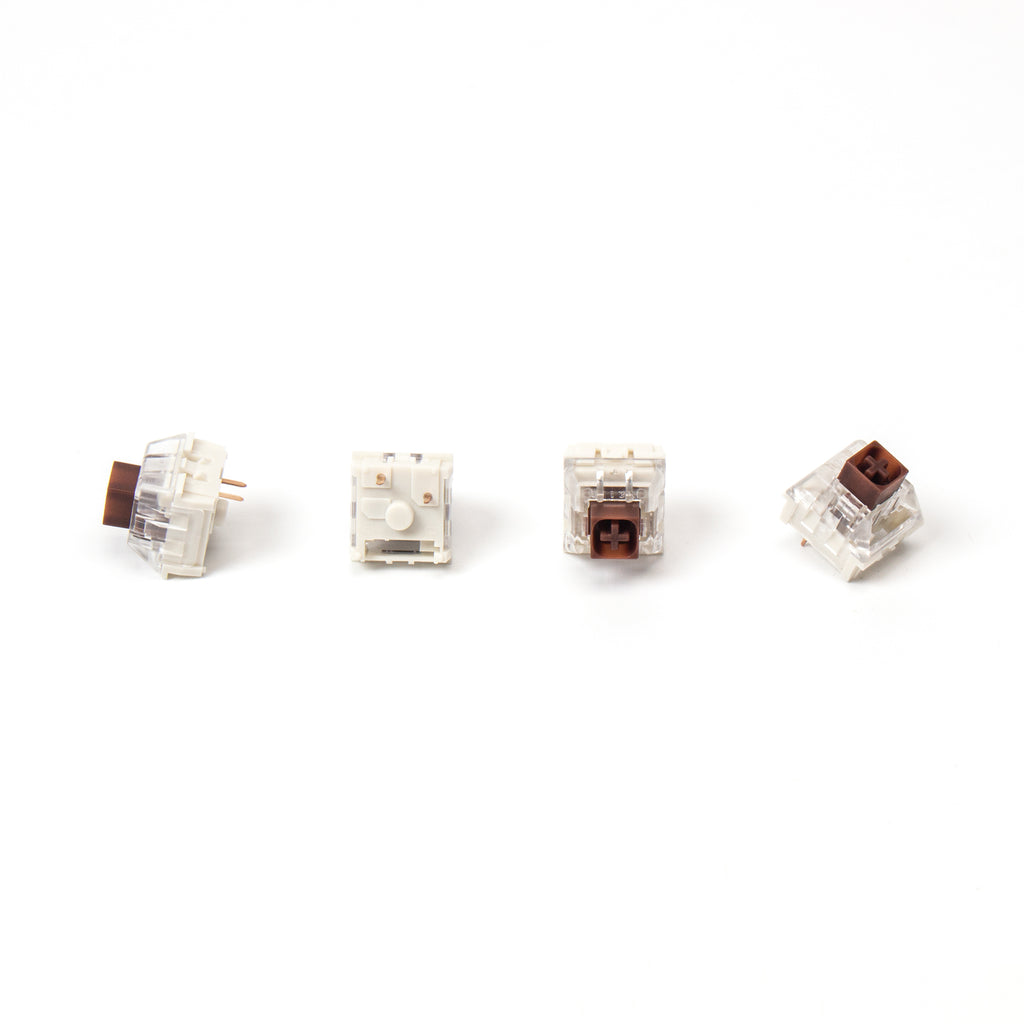

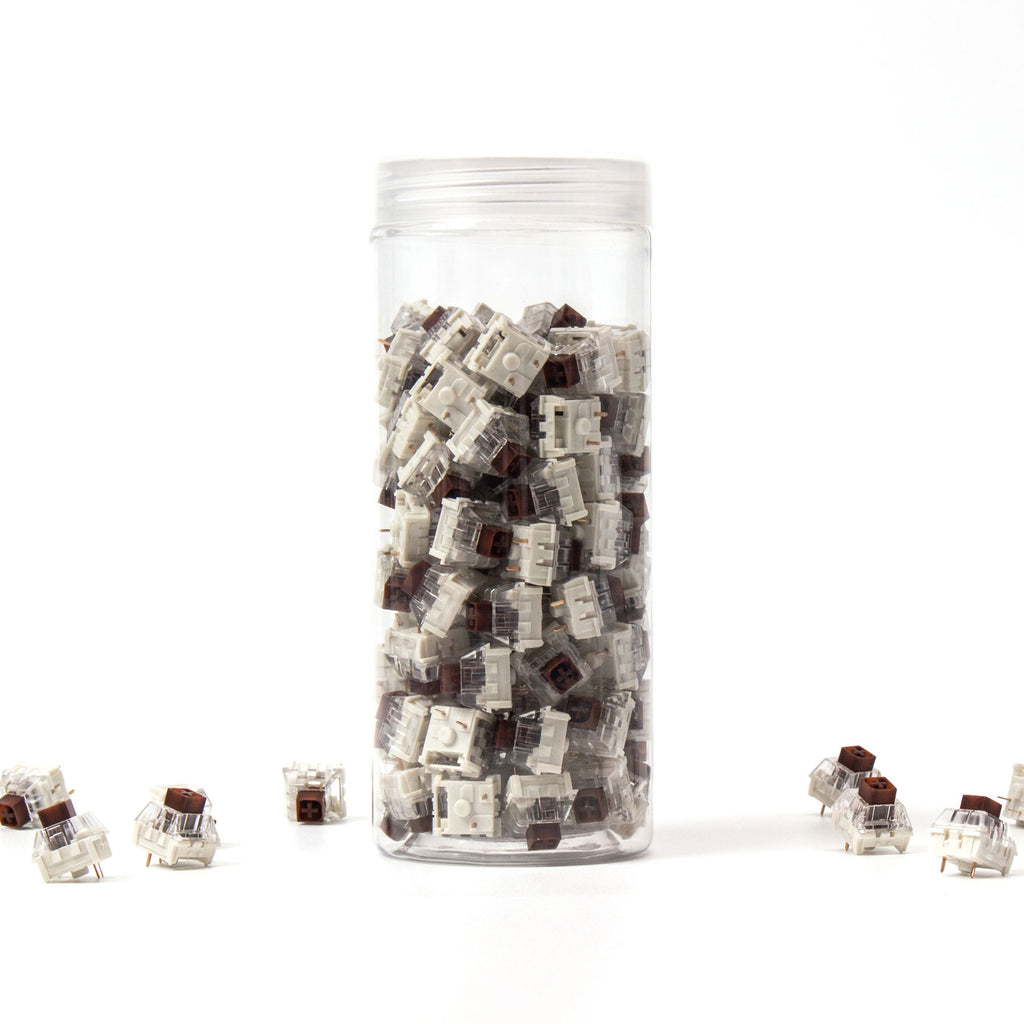

Box Brown Switch

TypeTactile
Operation Force45±10 gf
Pre-travel2.0±0.4 mm
Return Force≥15 gf
Tactile Force50±10 gf
Total Travel3.6±0.3 mm
Sound LevelMedium
Operation LifeUp to 80M cycles
Suitable ForMidway gaming/office
Kailh Box Brown Switch Force Travel Diagram

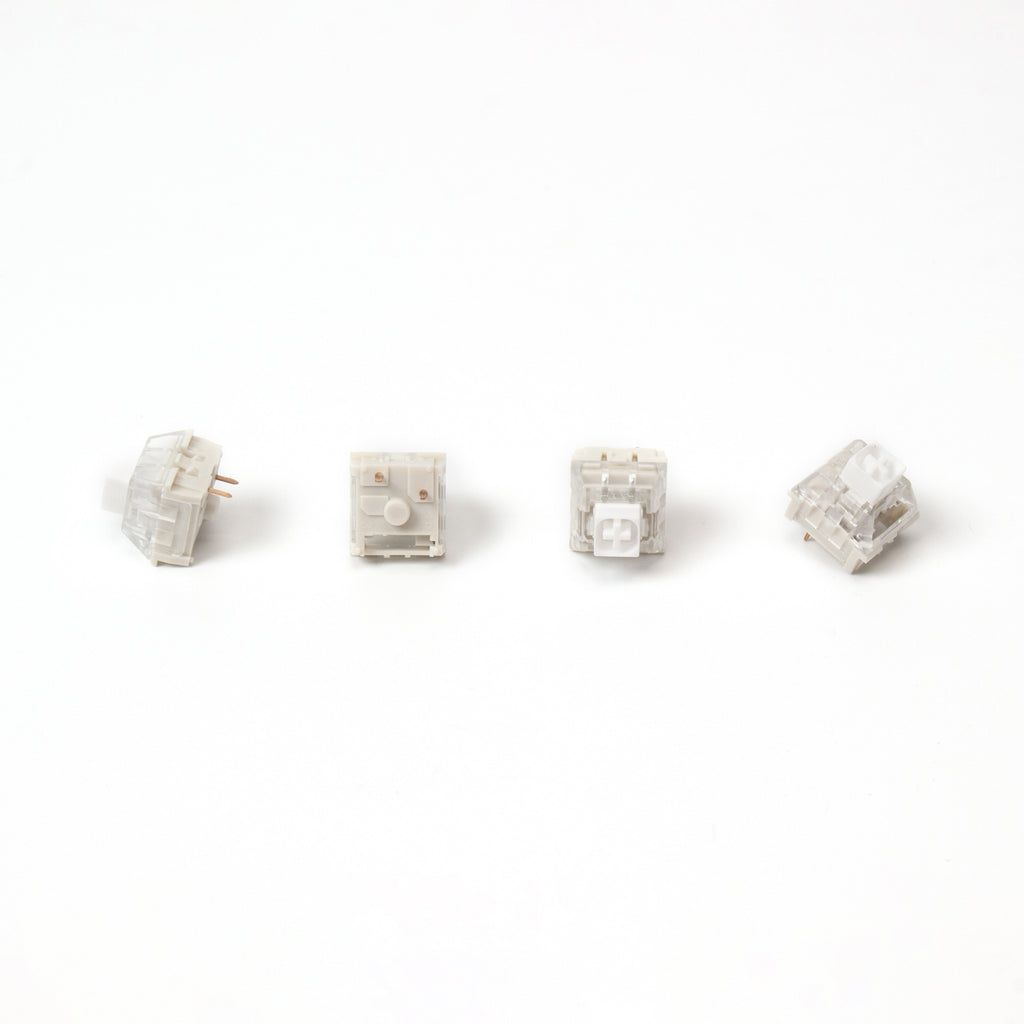

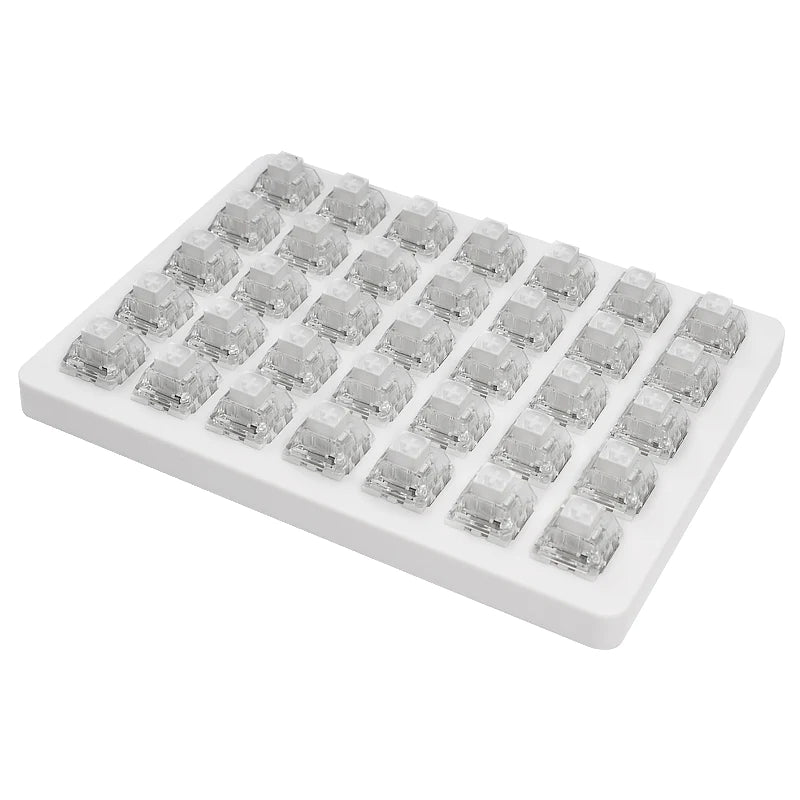

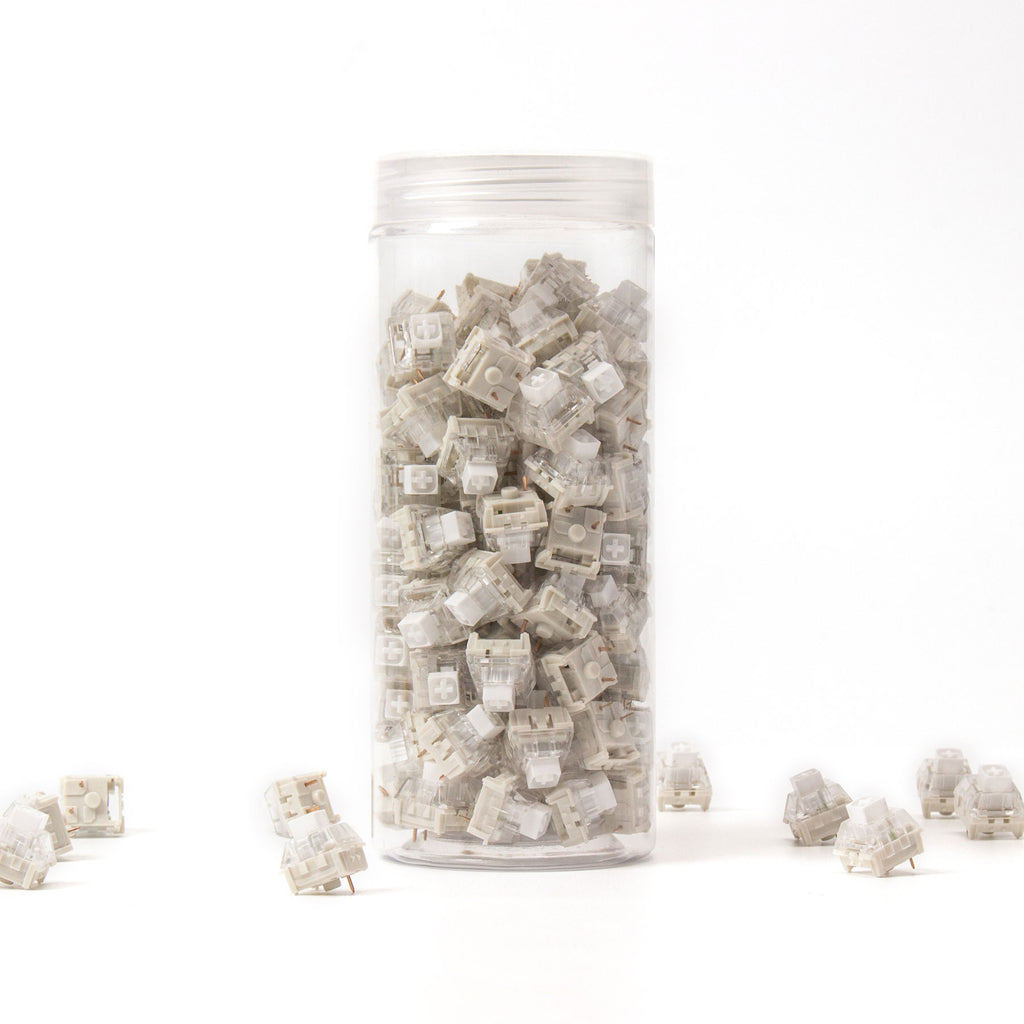

Box White Switch

TypeClicky
Operation Force45±15 gf
Pre-travel1.8±0.3 mm
Return Force≥15 gf
Tactile Force55±10 gf
Total Travel3.6±0.3 mm
Sound LevelLoud
Operation LifeUp to 80M cycles
Suitable ForTypist
Kailh Box White Switch Force Travel Diagram

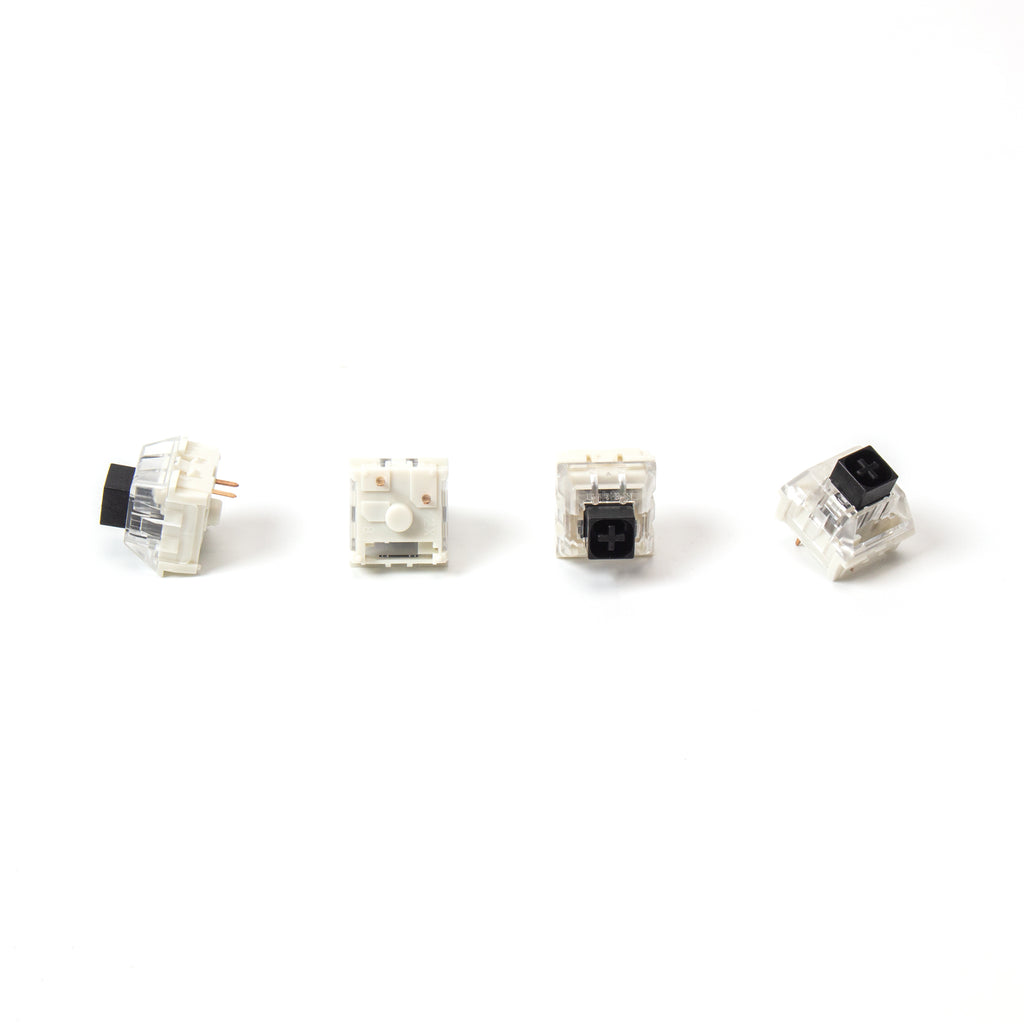

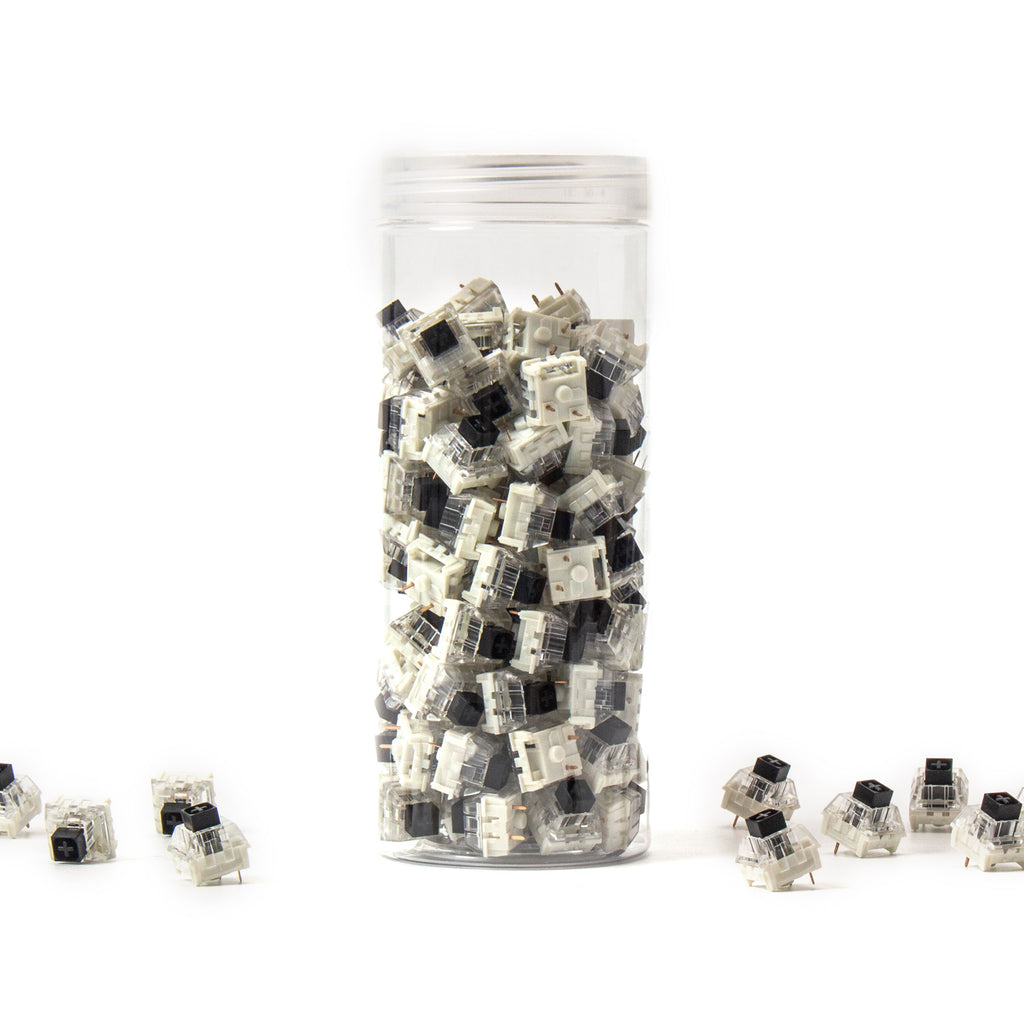

Box Black Switch

TypeLinear
Operation Force60±10 gf
Pre-travel1.8±0.3 mm
Return Force≥15 gf
Tactile Force-
Total Travel3.6±0.3 mm
Sound LevelLow
Operation LifeUp to 80M cycles
Suitable ForGaming/Typist
Kailh Box Black Switch Force Travel Diagram

Product Spec

Product NameKailh Box V1 Switch
StemPOM
Top HousingPC
Bottom HousingNylon PA66
ContactComposite gold
SpringSpring steel
Protecting CoverNylon PA66
SliderPOM
Pins3-Pin
Factory Pre-lubedNo
SMD LED SupportYes
