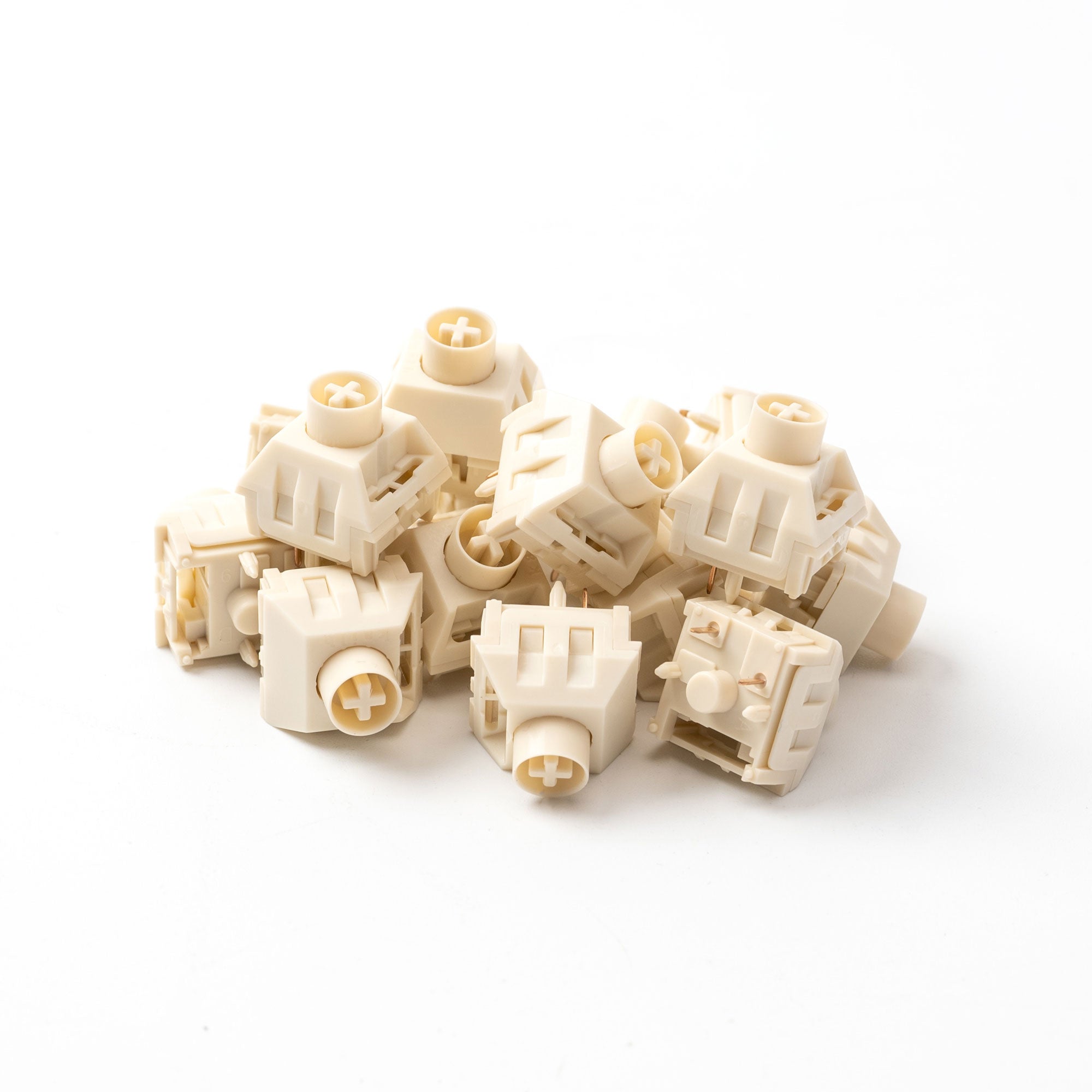

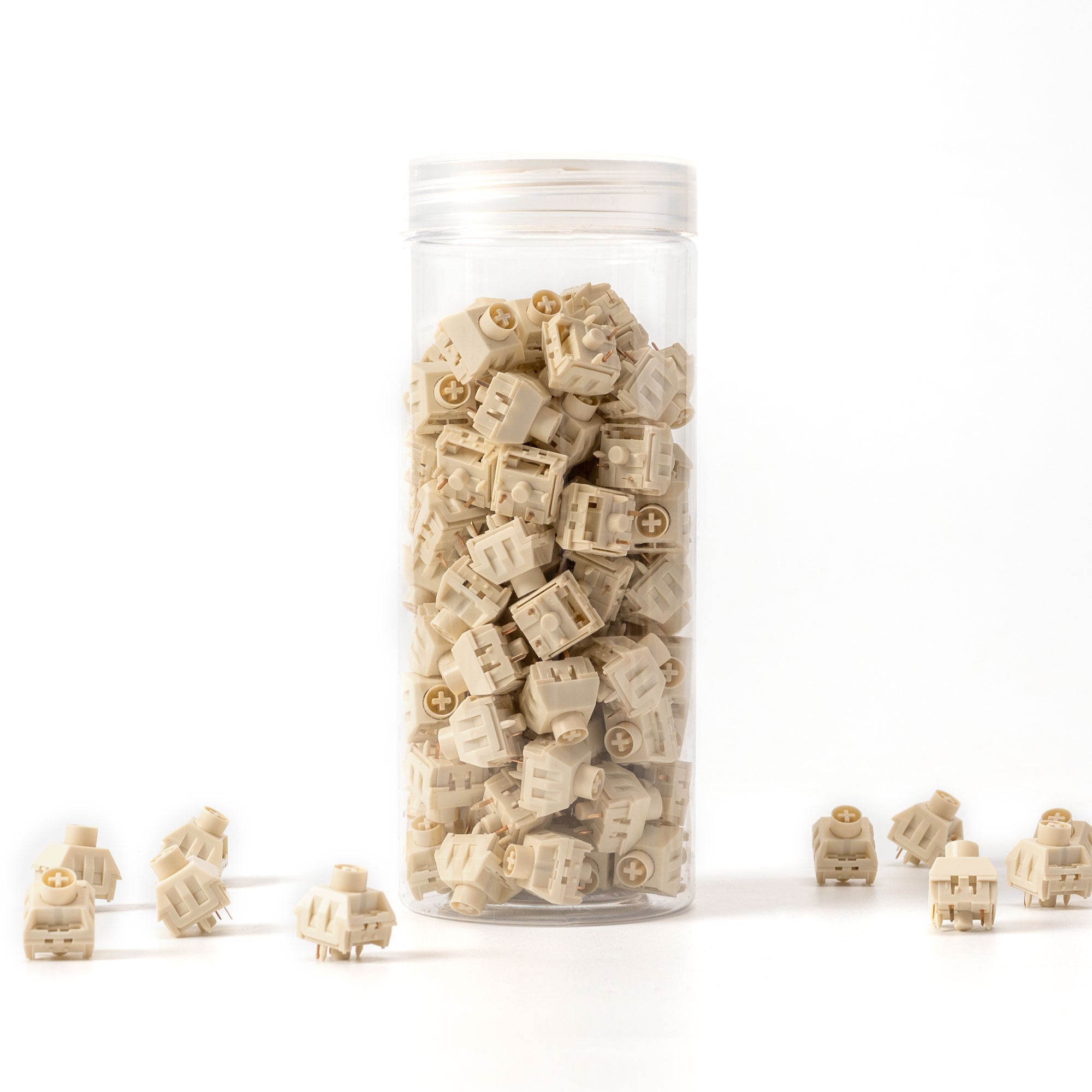

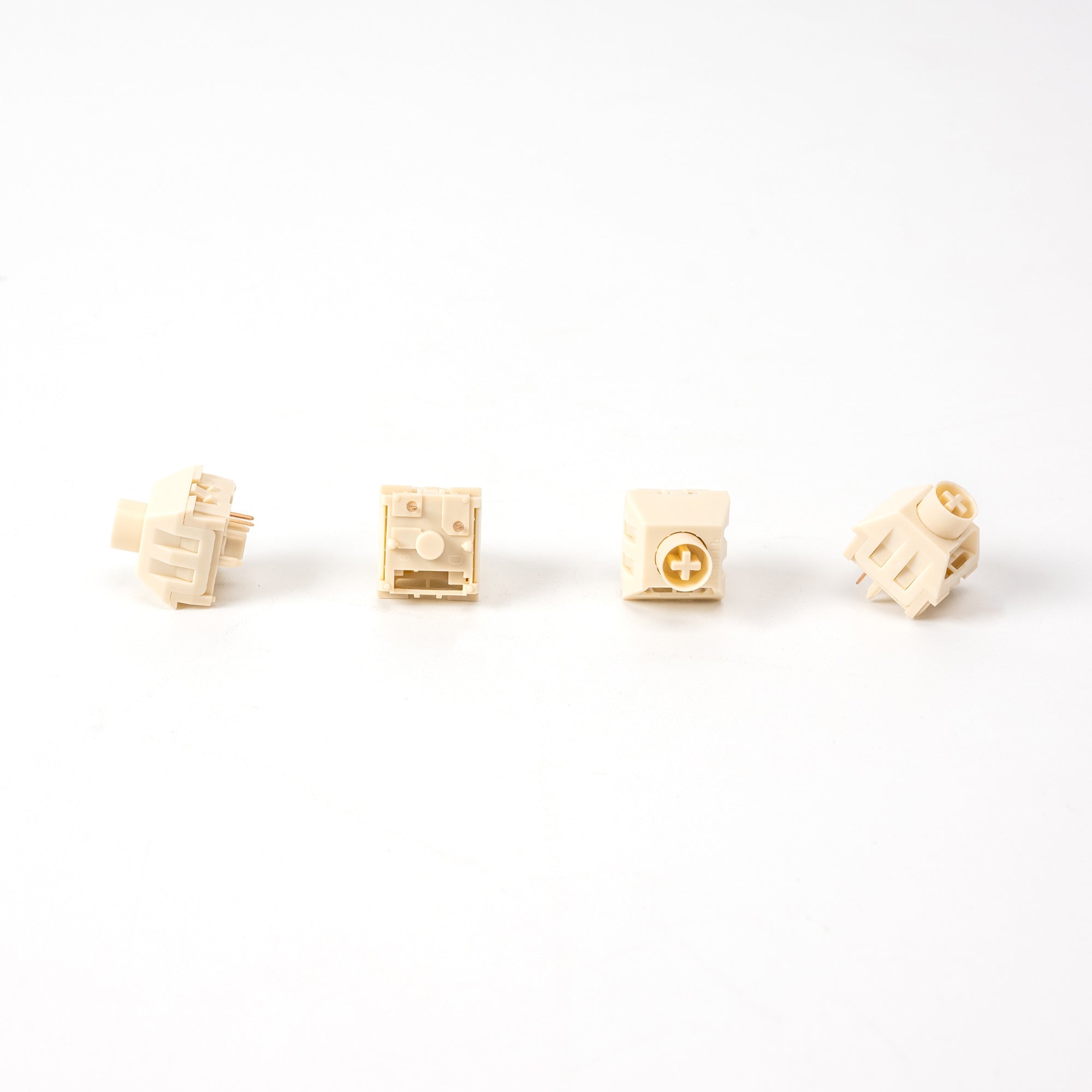

Kailh Box Cream Pro Switch Set
Brand New POM PRO Material
The Box Cream Pro Switch utilizes the special POM material newly developed by Kailh with improved POM wear resistance material. By reducing the switch’s friction coefficient, the POM switch’s unique clear sound is retained.
Factory Pre-Lubed
Compared to the older version (Box Cream), the Box Cream Pro Switch is factory pre-lubed. After many debugging testings of the lubricating oil ratios, we’ve reached a balance point that improves the entire POM switch body’s smoothness
Long Spring
The Box Cream Pro Switch is equipped with a long spring to provide a strong rebound, delivering a unique and smooth fingertip feel.
Innovative “Box” Structure
The innovative sealed “Box“ structure prevents dust and water from corrosion and provides extra protection for the contact plate and leaf.
Innovative “Box” Structure
The innovative sealed “Box“ structure prevents dust and water from corrosion and provides extra protection for the contact plate and leaf.
5-Pin Stable Base
The 5-Pin structure increases stability and greatly reduces the wobble of the switch when it is pressed.
Product Structure
Technical Data
Box Cream Pro Switch
Type | Linear |
---|---|
Operation Force | 45±10 gf |
Pre-travel | 1.7±0.4 mm |
Return Force | ≥15 gf |
Total Travel | 4.0±0.3 mm |
Sound Level | Low |
Operation Life | Up to 50M cycles |
Suitable For | Gaming/office |
Product Spec
Product Name | Kailh Box Cream Pro Switch |
---|---|
Stem | POM |
Top Housing | POM |
Bottom Housing | POM |
Contact | Composite gold |
Spring | Spring steel |
Protecting Cover | Nylon |
Slider | POM |
Pins | 5-Pin |
Factory Pre-lubed | Yes |
SMD LED Support | Yes |
