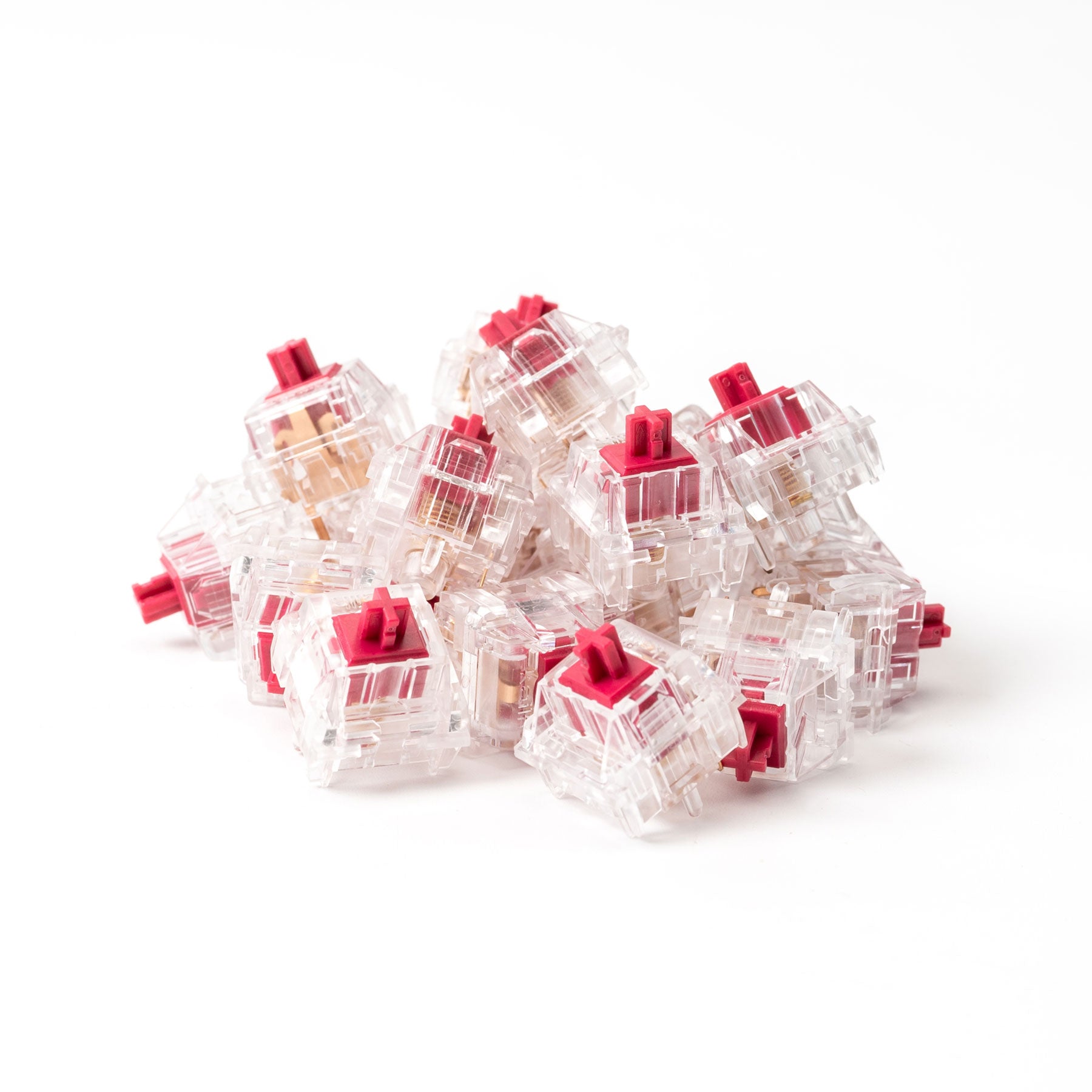

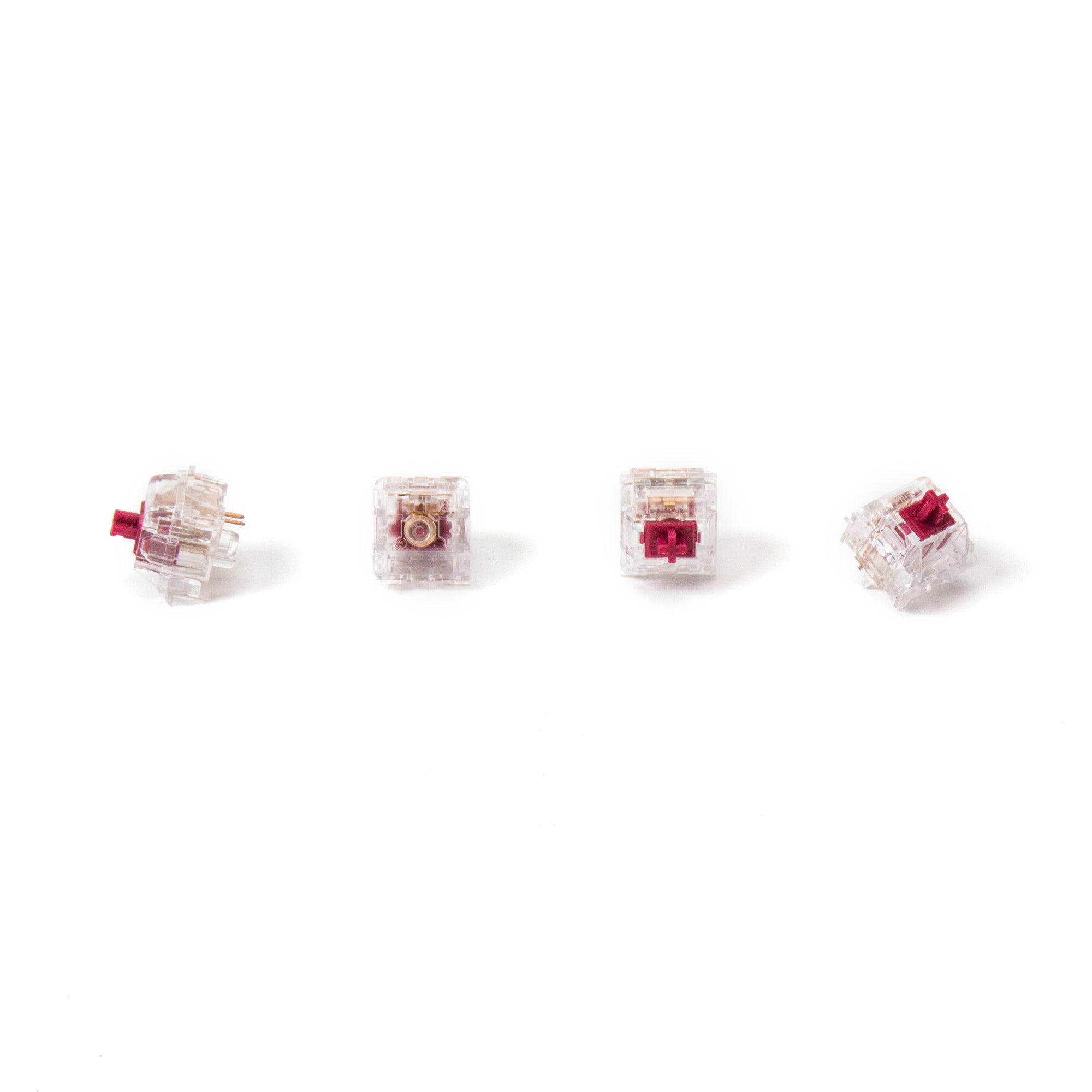

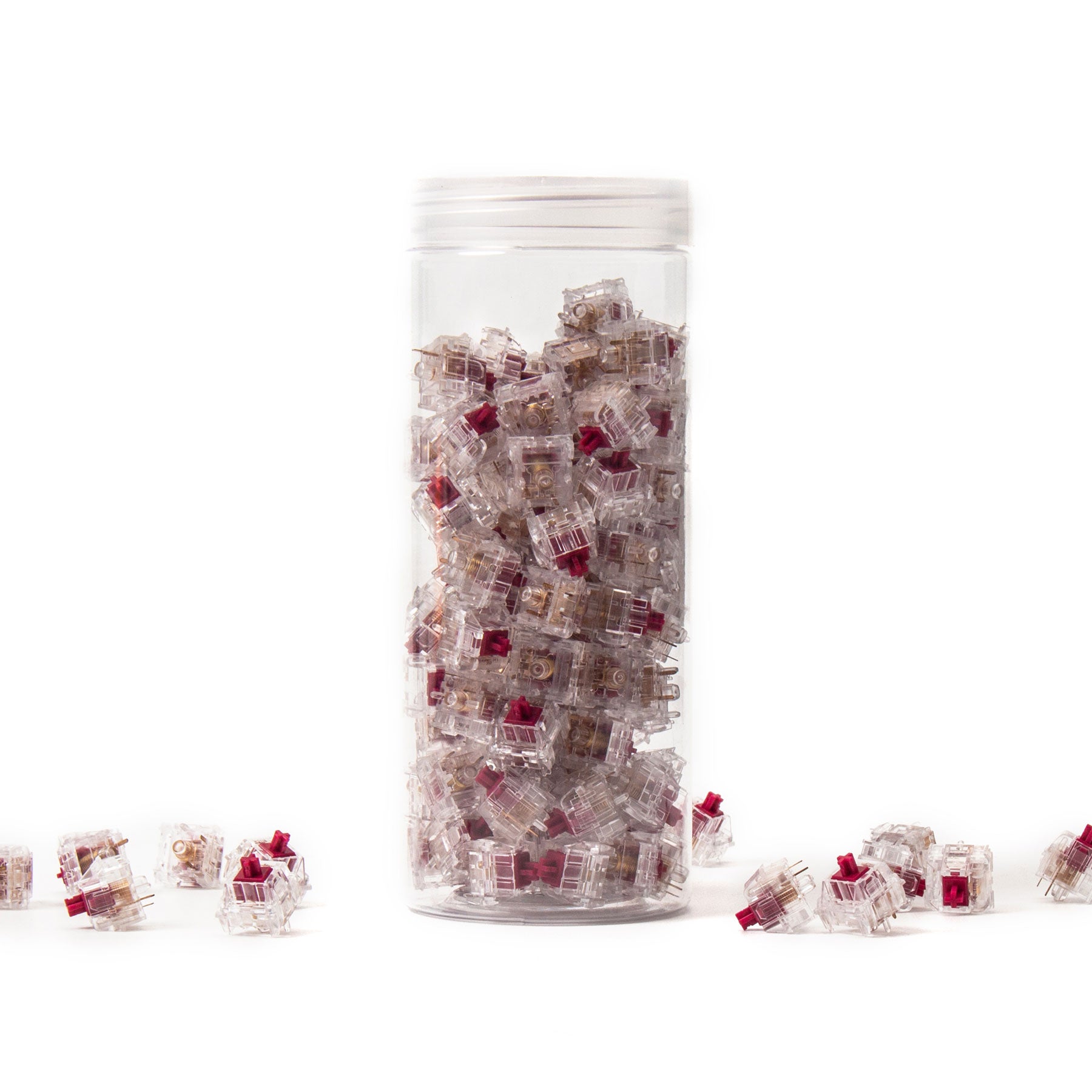

Kailh Crystal Burgundy Pro Linear Switch Set
Linear Typing Feel
The Crystal Burgundy Pro Switch is a new linear switch from Kailh that delivers a unique, smooth typing experience. It features a burgundy POM stem and transparent PC housing that resembles a crystal-clear look. This switch is your ideal option if you are a linear lover.
Factory Pre-Lubed
This switch is pre-lubed in the factory to increase its smoothness and reduces the spring noise.
Long Wine Red Stem Post
The wine-red MX stem adopts a lengthening scheme to bring out the feel of an advanced bottom-out.
Long Gold-Plated Spring
This switch is engineered with a long gold-plated spring to allow for a fast and strong rebound, as well as helps to prevent this switch from rust and corrosion.
Long Gold-Plated Spring
This switch is engineered with a long gold-plated spring to allow for a fast and strong rebound, as well as helps to prevent this switch from rust and corrosion.
High Light Transmittance
A fully transparent PC housing to improve light transmittance. For those that like to use the keyboard RGB lighting to create their own desktop lighting atmosphere, this helps to bring a more vibrant lighting experience.
Product Structure
Technical Data
Crystal Burgundy Pro Switch
| Type | Linear |
|---|---|
| Operation Force | 37±10 gf |
| Pre-travel | 1.3+0.4/-0.3 mm |
| Return Force | ≥15 gf |
| Total Travel | 3.4±0.4 mm |
| Sound Level | Low |
| Operation Life | Up to 50M cycles |
| Suitable For | Gaming/office |
Product Spec
| Product Name | Kailh Crystal Burgundy Pro Switch |
|---|---|
| Stem | POM |
| Top Housing | PC |
| Bottom Housing | PC |
| Contact | Composite gold |
| Spring | Spring steel |
| Pins | 5-Pin |
| Factory Pre-lubed | Yes |
| SMD LED Support | Yes |
